Scissor Lift

EL-4555XCe
EL SERIES

SELF-PROPELLED MOBILE ELEVATED WORK PLATFORM

Download EL-4555XCe Spec Sheet
Get Quote

Resources

EL SERIES Parts Manuals
EL SERIES Operations Manual
EL SERIES Maintenance Manual

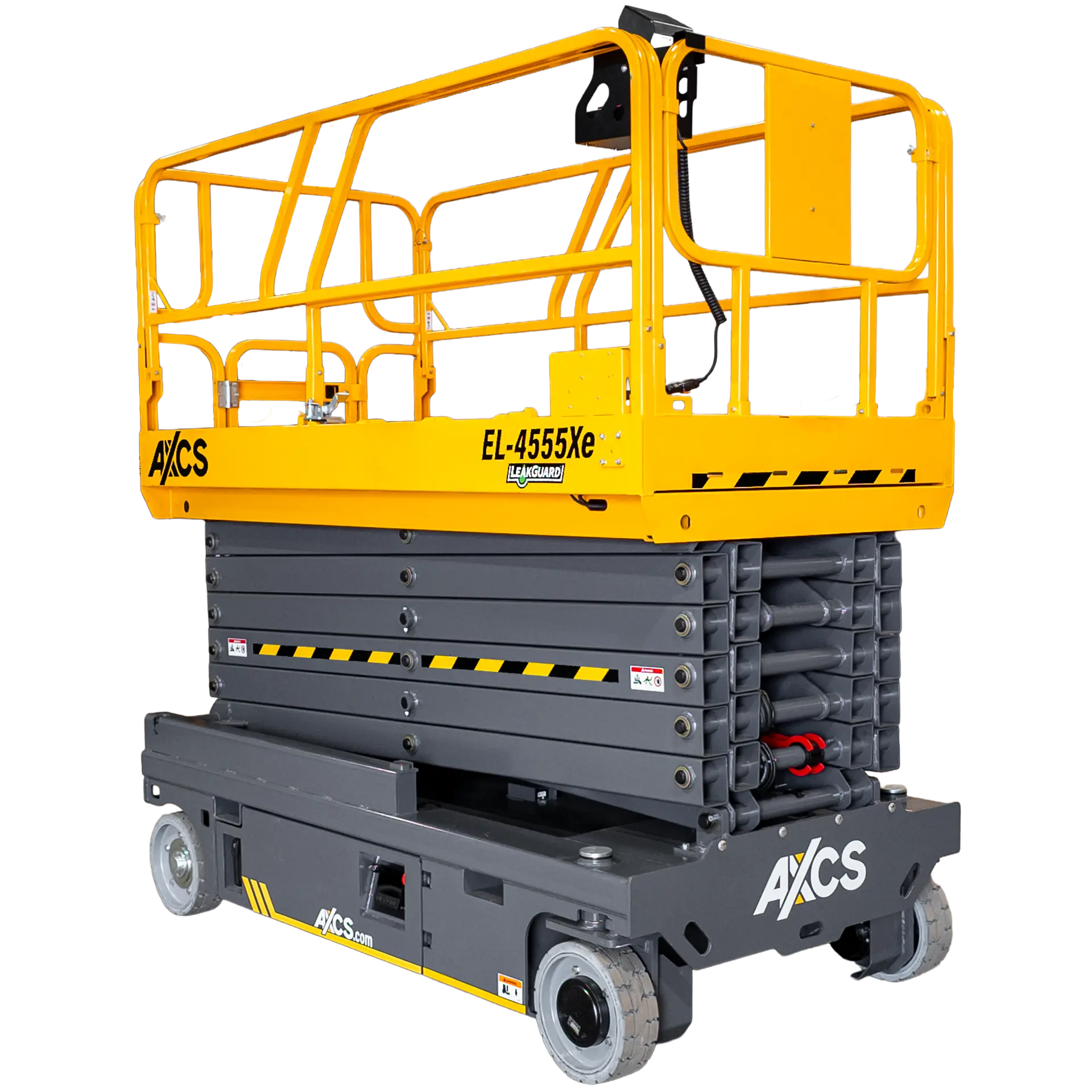

EL-4555Xe Scissor Lift

KEY FEATURES

  • Electric drive
  • Proportional controls
  • LeakGuard®
  • 110V power-to-platform
  • Indoor & outdoor operation settings
  • 30A charger
  • Non-slip deck
  • All motion alarm
  • Flashing beacon
  • Removable platform controls
  • Self-locking gate
  • Liftable with forklift or crane
  • Dual maintenance bars
  • Onboard diagnostic system
  • Manual descent cable
  • Active tilt alarm
  • Slide out extension
  • Automatic pothole protection
  • Non-marking tires
  • Horn
  • CAN communication protocol
  • 2-year parts & labor warranty
  • 5-year structural warranty

AVAILABLE OPTIONS

TU 600 Telematics

Telematics

PS 1930 W Perimeter Lights Cutout

Perimeter Lighting / Safety Zone

Specifications

  • Standards ComplianceANSI A92.20
  • Working Height51.1 ft | 15.6 m
    - 2 Person Indoor
  • Working Height38 ft | 11.6 m
    - 1 Person Outdoor
  • Platform Height Maximum45.1 ft | 13.75 m
    - 2 Person Indoor
  • Platform Height Maximum32 ft | 9.75 m
    - 1 Person Outdoor
  • Platform Height Minimum63 in | 1.6 m
  • Ground Clearance Elevated0.79 in | 2 cm
  • Ground Clearance Lowered4.7 in | 12 cm
  • Overall Length w/ Step109.8 in | 2.79 m
  • Overall Width55 in | 1.39 m
  • Stowed Height (Rails Unfolded)103.9 in | 2.64 m
  • Stowed Height (Rails Folded)83.5 in | 2.12 m
  • Platform Length105.5 in | 2.68 m
  • Platform Width45.3 in | 1.15 m
  • Slide Out Extension Deck Length39.4 in | 1 m
  • Wheelbase87.4 in | 2.22 m
  • Tires15 x 5 in | 38 x 12.7 cm

Performance

  • Rated Occupancy2 / 1 Person(s)
    - Indoor/Outdoor
  • Platform Capacity771.6 lbs | 350 kg
  • Slide Out Extension Deck Capacity330 lbs | 150 kg
  • Gradeability25%
  • Inside Turn Radius0 in | 0 cm
  • Drive Speed Elevated0.4 mph | 0.6 km/h
  • Drive Speed Lowered2.8 mph | 4.5 km/h
  • Working Slope2° / 3°
  • Lift Speed (Up/Down)77 / 62 s
  • Weight8818 lbs | 4000 kg

Power

  • Hydraulic Tank Capacity5.5 gal | 20.7 L
  • Battery4 x 12V 300 Ah
