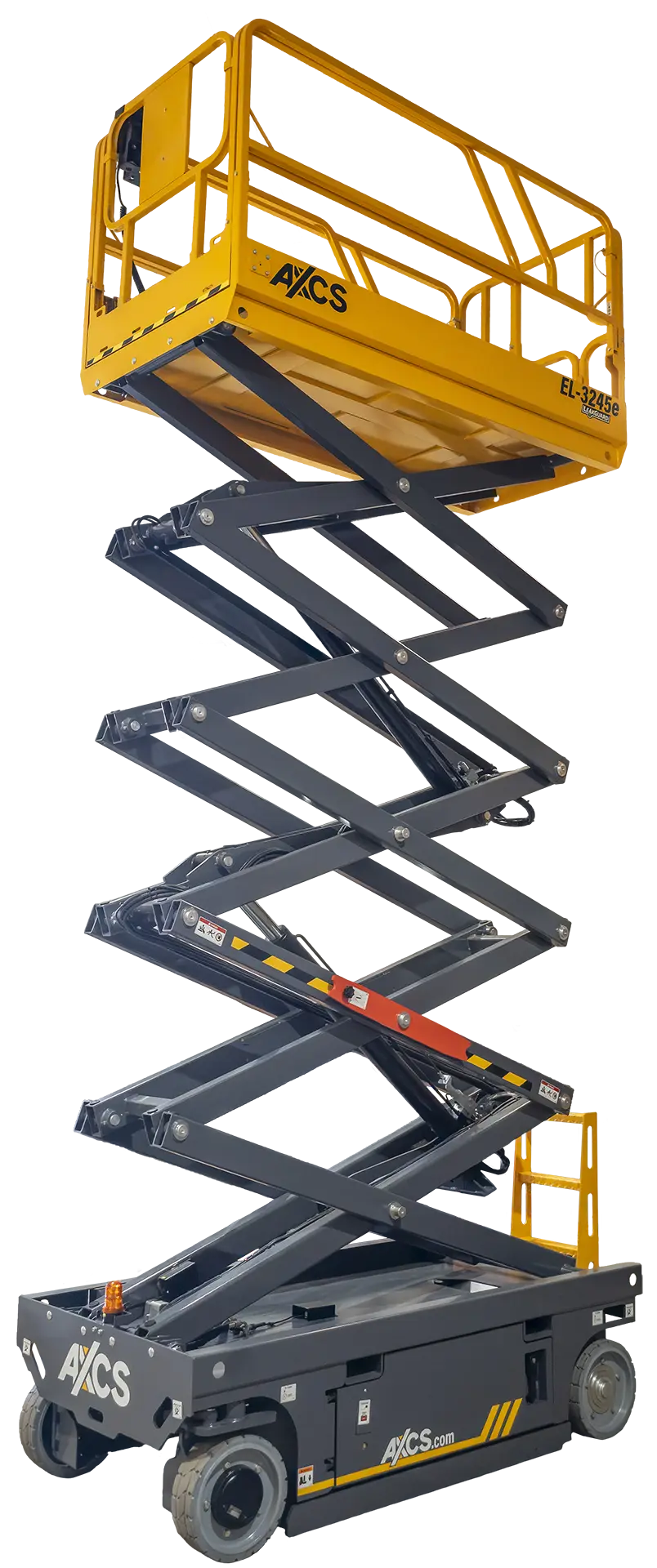

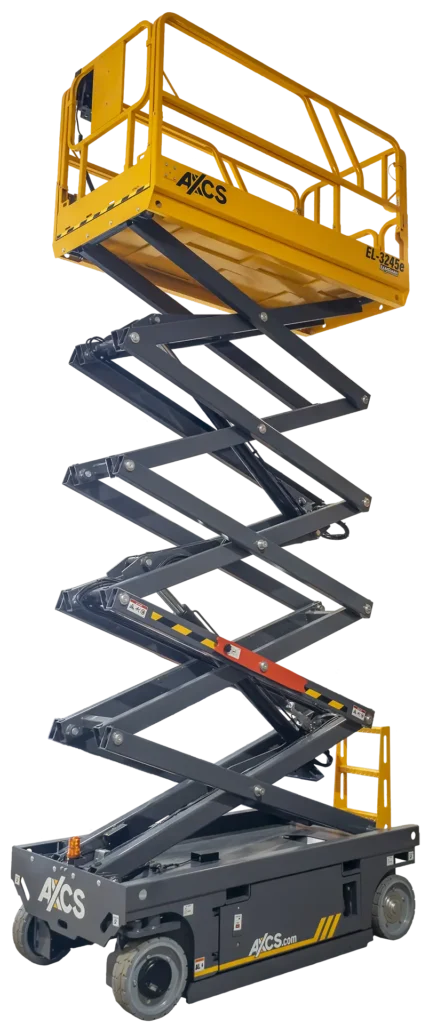

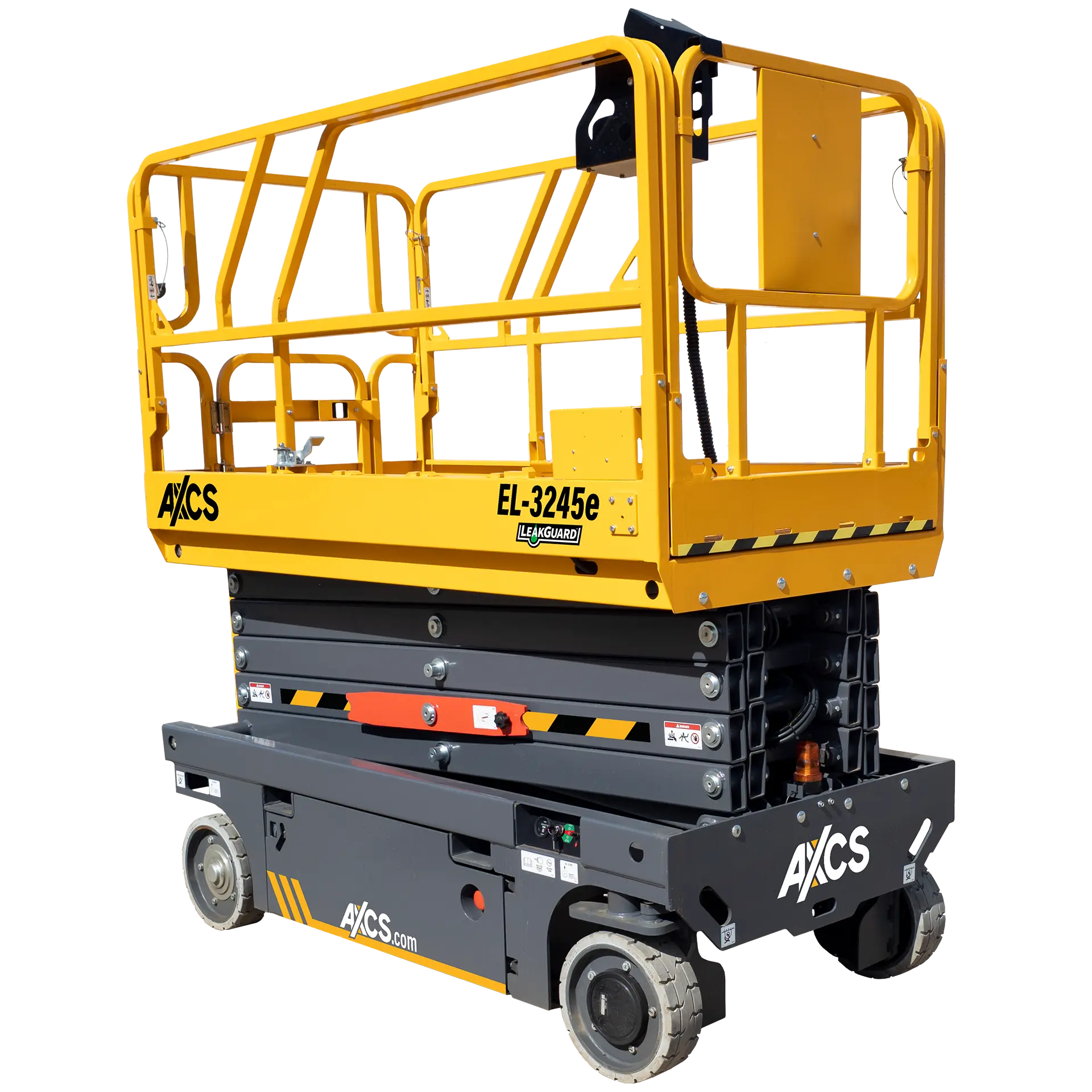

EL-3245e

EL SERIES

Specifications

• Standards ComplianceANSI A92.20
• Working Height38.8 ft | 11.8 m
  - 2 Person Indoor
• Working Height32.3 ft | 9.8 m
  - 1 Person Outdoor
• Platform Height Maximum32.8 ft | 10 m
  - 2 Person Indoor
• Platform Height Maximum26.3 ft | 8 m
  - 1 Person Outdoor
• Platform Height Minimum52.8 in | 1.34 m
• Ground Clearance Elevated0.79 in | 2 cm
• Ground Clearance Lowered4.7 in | 12 cm
• Overall Length w/ Step97.3 in | 2.47 m
• Overall Width45 in | 1.15 m
• Stowed Height (Rails Unfolded)96.1 in | 2.44 m
• Stowed Height (Rails Folded)73.2 in | 1.86 m
• Platform Length91 in | 2.31 m
• Platform Width45 in | 1.14 m
• Slide Out Extension Deck Length39.4 in | 1 m
• Wheelbase73.2 in | 1.86 m
• Tires15 x 5 in | 38 x 12.7 cm

Performance

• Rated Occupancy2 / 1 Person(s)
  - Indoor/Outdoor
• Platform Capacity661 lbs | 300 kg
• Slide Out Extension Deck Capacity330 lbs | 150 kg
• Gradeability25%
• Inside Turn Radius0 in | 0 cm
• Drive Speed Elevated0.4 mph | 0.6 km/h
• Drive Speed Lowered2.8 mph | 4.5 km/h
• Working Slope2° / 3°
• Lift Speed (Up/Down)47 / 47 s
• Weight6325 lbs | 2869 kg

Power

• Hydraulic Tank Capacity5.5 gal | 20.7 L
• Battery4 x 6V 315 Ah
