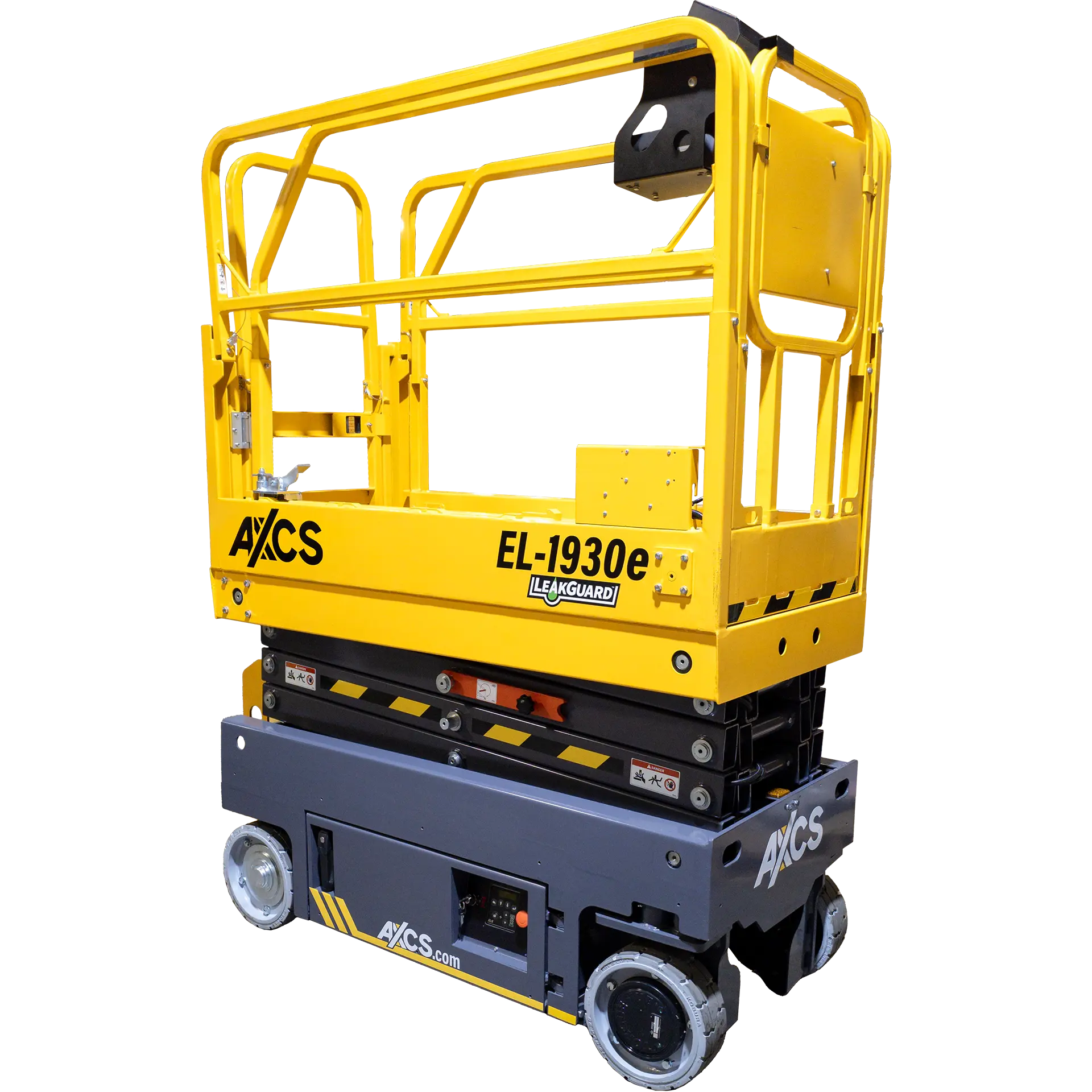

EL-1930e

EL SERIES

Specifications

• Standards ComplianceANSI A92.20
• Working Height24.4 ft | 7.43 m
• Platform Height Maximum18.4 ft | 5.6 m
• Platform Height Minimum42.9 in | 1.09 m
• Ground Clearance Elevated0.79 in | 2 cm
• Ground Clearance Lowered2.4 in | 6 cm
• Overall Length w/ Step70.1 in | 1.78 m
• Width30.7 in | 0.78 m
• Stowed Height (Rails Unfolded)86.6 in | 2.2 m
• Stowed Height (Rails Folded)67.3 in | 1.71 m
• Platform Length64.2 in | 1.63 m
• Platform Width30.7 in | 0.78 m
• Slide Out Extension Deck Length34 in | 0.86 m
• Wheelbase52 in | 1.32 m
• Tires12.5 x 4.3 in | 31.8 x 10.8 cm

Performance

• Rated Occupancy (Indoor/Outdoor)2 / 1 Person(s)
• Platform Capacity507 lbs | 230 kg
• Slide Out Extension Deck Capacity250 lbs | 113 kg
• Gradeability25%
• Inside Turn Radius0 in | 0 cm
• Drive Speed Elevated0.4 mph | 0.6 km/h
• Drive Speed Lowered2.8 mph | 4.5 km/h
• Working Slope2° / 3°
• Lift Speed (Up/Down)30 / 25 s
• Weight3,549 lbs | 1,610 kg

Power

• Hydraulic Tank Capacity3.9 gal | 15 L
• Battery4 x 6V 225 Ah
